Before we go any further...in case you are unaware...you MUST have the complete BMW factory rack (see pic at right) for our backrest system to work. Comprende? Good.. Lets proceed.

I have designed this setup to be an easy install so minimum tools will be required. All you'll really need is a set of hex wrenches. Install should take you under 15 minutes... FYI... this backrest will fit both the R1100R and R850R that use this rack. As I do NOT have access to an R1100R, I can NOT say for sure, but I THINK our bracket can be installed with the factory rack on the bike. However, this install guide will show you how to install it with the rack OFF the bike which I would think would be much easier. Same principle. Either way... a no brainer.
Note: Pics are of early prototype brackets which were powder coated..Production pieces have a soft Rhino Coating.
Parts/Materials Needed:
(1) R1100R/R850R Stealth Backrest Kit from Pirates' Lair
(4) 6 x 40mm screws (furnished)
(4) 6 x 16mm socket cap screws (furnished)
(1) kit hex wrenches
(1) ratchet or hex driver
(1) bottle Blue strength Loctite
(1) Quick release Plastic Knob (furnished)

Step #1: Getting Started

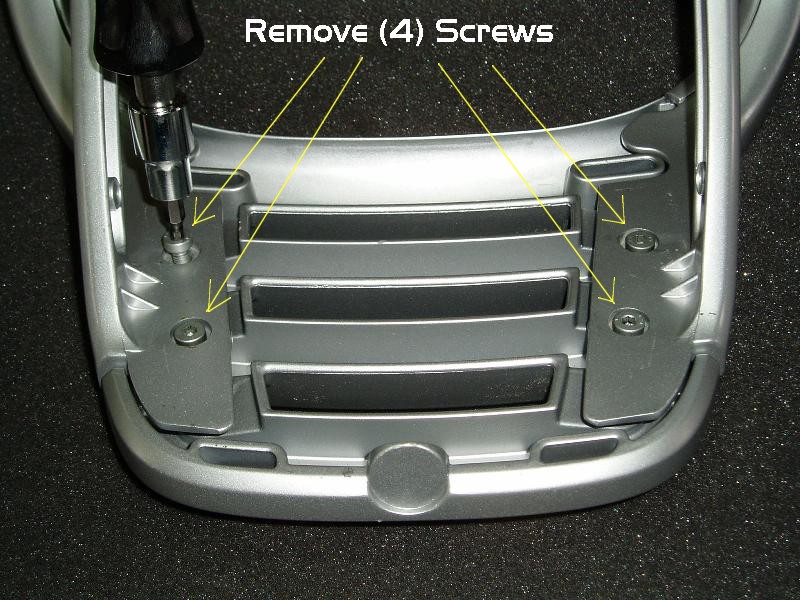

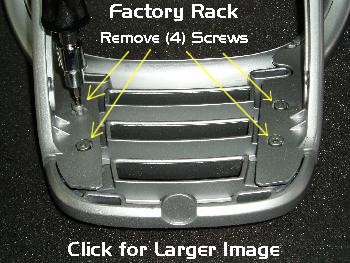

After your first beer, remove the (4) factory screws that hold the support brackets on the rear rack. These will be replaced by the furnished 6 x 16mm screws.

Step #2: Installing R1100R/850R Rack/Backing Plate

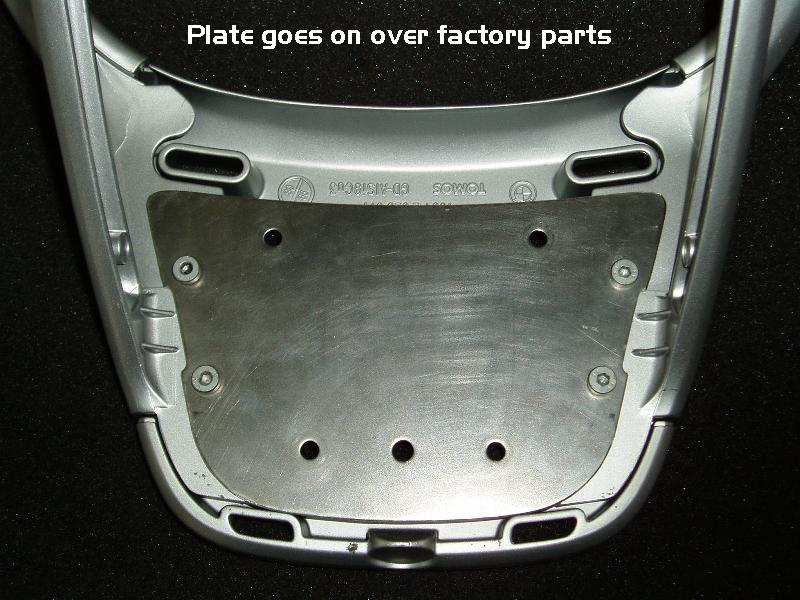

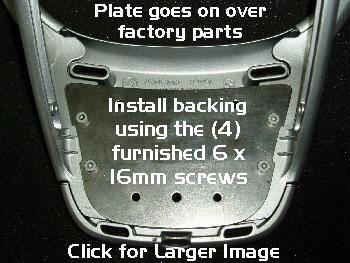

Now, while holding the factory side brackets in position, take the furnished stainless steel backing plate and lay it on top of the side brackets and install with the furnished (4) 6 x 16mm screws.

I suggest you use Blue strength Loctite. Do NOT tighten. Leave them loose for now...



Step #3: Installing R1100R/R850R Stealth Rack

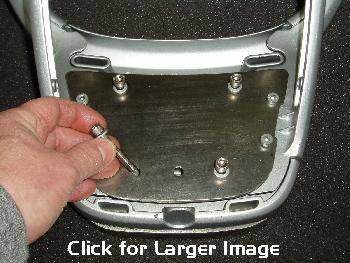

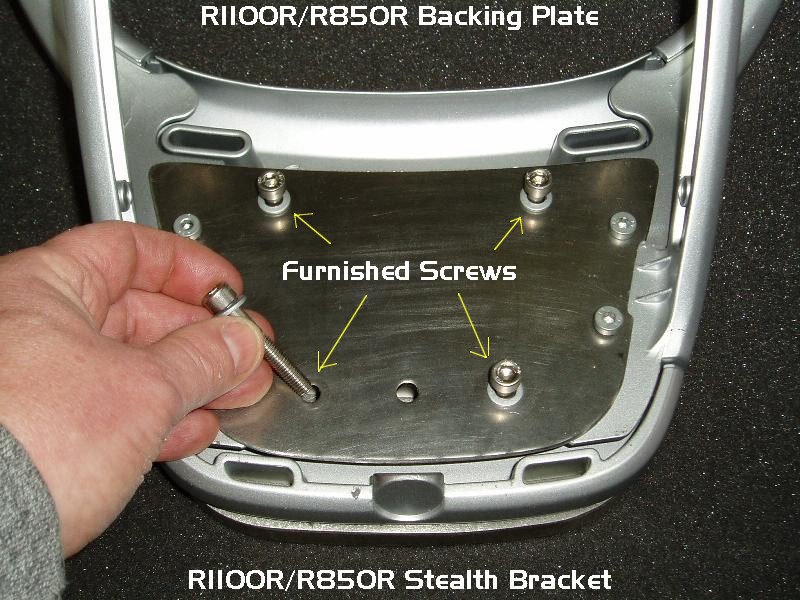

OK... The backing plate is in position with the screws still loose. Now, place the R1100R Stealth bracket on top of your factory rack with screw holes facing you. If you are doing this install with the rack off the bike.. place the bracket on the bottom as shown in pic to right. Line up the holes...

Install all (4) of the furnished 6 x 40mm screws. I suggest you use Blue strength Loctite.



Step #4: Final Step... Your Done!!

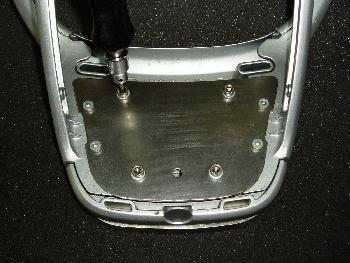

First..hand tighten the (4) 6 x 16 outer screws, then the (4) inner 6 x 40mm screws. Now using your hex wrench or ratchet, snug them down then add a quarter turn.... and for gods sake... use common sense. The factory rack is lightweight aluminum so if you are ape-like with your tightening.. you'll strip something. * Consider yourself forewarned.

Once you have all your bolts tight.. you're either done or all you need do is reinstall the rack to the bike.

A job well done.. time for the other beer.. Sit back and revel in your own magnificence.

Step 5: Backrest Usage

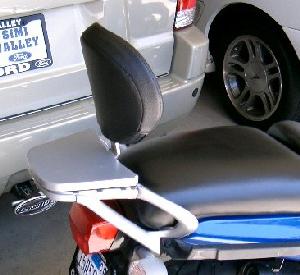

1. Slide the backrest all the way in. There is only one position.
2. Reach underneath and lock it in using either the furnished 1/4" screw ..or the furnished Quick Release Knob. Only one securing screw is needed.


 Hope you and your passenger enjoy it. If possible.. send pics and comments of our backrest on your bike. We'll add to the website.

Warranty: Pirates' Lair will replace the Stealth bracket or internal hardware FREE of CHARGE for a period of ONE YEAR from date of purchase should your bracket or internal pieces break. As of this writing, I would assume that Sargent Cycle will warranty the upholstery portion as well. No need to keep your receipt. I'll have you on file. Just contact me if you encounter any problems.
Disclaimer: Please be advised that the backrest you are agreeing to install and use on your BMW R1100R or R850R has not been tested under EVERY conceivable condition. Every effort has been made to design a sturdy and durable product, but at this time.. there are numerous "real-world" variables that may or may not cause possible injury to passenger or rider or both. Please be aware that you are hereby forewarned as to these "variables" and by proceeding with the installation of said backrest, you are in effect waiving all legal recourse /rights in the event of accident caused by.. or damage inflicted upon..or contributed to... by the Stealth backrest. In no case will Jerry (a.k.a. Pirate) Finley, Pirates' Lair or any other of the contributing participants be held liable for injury or damage (consequential or otherwise) resulting from or arising out of usage of the Stealth backrest by you or your passengers. The reader should recognize that motorcycling is a dangerous activity that can result in injury or death. You are hereby notified that, should you decide to proceed, you do so at your own risk. If you do NOT agree with all aspects of this disclaimer... please return the backrest and I'll gladly refund the entire purchase price (excluding shipping)
